Transporte de materiales

Agudio FlyingBelt is based on a combination of standard components (wire ropes, flat rubber belt, garlands of rollers, drive drums, etc) in a patented configuration. This allows the installation of the Flyingbelt by itself or the integration with traditional conveyors on the ground. Moreover the use of standard components assures an easy maintenance of the systems.

Capacity: up to 5’000 T/h

Speed: up to 5 m/s

Length: up to 10 km

Single span: up to 1’000 m

Belt width: 600 - 1800 mm

Inclines: up to 25°

Agudio CableCranes are able to offer the highest performances in terms of load and speed both translation and hoisting.
There are several typologies of cablecranes: depending on the way of moving tracking ropes there are radial, parallel or oscillating cablecranes operating on a semi-circular or rectangular area in the construction site.

Capacity: up to 45 ton

Translation speed: up to 8 m/s

Hoisting speed: up to 3 m/s

Span: up to 2’000 m

Vertical rise: up to 400 m

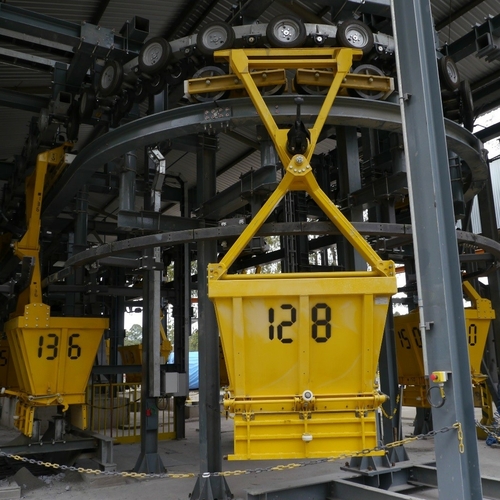

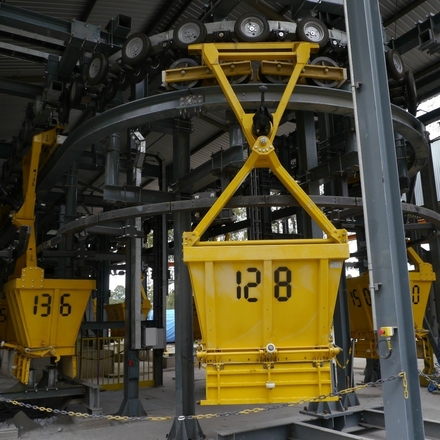

Agudio is able to offer new up to date ropeways or upgrade existing ropeways in order to give very high level of automation to reach the highest level of safety, reliability and efficiency.

Ropeway stations are composed by several electromechanical components (rails, guides, wheels, levers, etc) controlled by a proprietary synchronization system able to assure the safe and fully automated operation of the plant at any speed.

Capacity: up to 800 ton/h

Speed: up to 6 m/s

Length: up to 15 km

Single span: up to 1’500 m

Bucket capacity: up to 2.5 ton

Inclines: no limitation

Within Agudio product portfolio there are also other material ropeways such as inclined planes, hybrid jig-back and temporary material ropeways, which are fully customized according the Customer requirements leveraging on the experience achieved in similar systems for people transportation.
